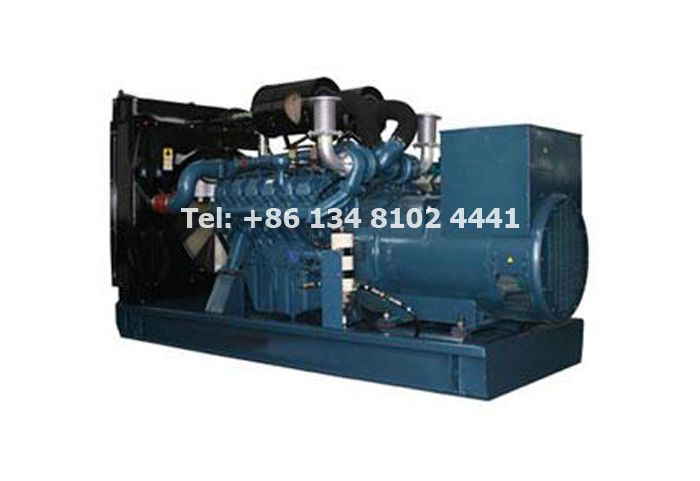

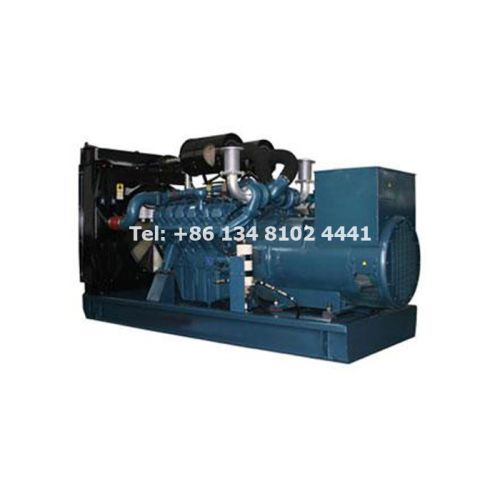

600KW 750KVA Doosan Daewoo Diesel Generator Set
600KW 750KVA Doosan Daewoo Diesel Generator Set
Product Description
600KW 750KVA Doosan Daewoo Diesel Generator Set Standard Features
1. Engine: DOOSAN P222LE-II
2. Radiator 50℃ max
3. Fans are driven by belt, with safety guard
4. 24V charge alternator
5. Dry type air filter, fuel filter, oil filter
6. Alternator: single bearing alternator
7. IP23, insulation class H/H
8. Main line circuit breaker
9. Standard control panel
10. Absorber
11. Muffler
12. User manual
| Diesel Engine Data | |
| Manufacturer: | DOOSAN |
| Model: | P222LE-II |
| Standby/Prime Power: | 652KW/610KW |
| Rated Speed: | 1500(r/min) |
| Cycle: | 4 stroke |
| Cylinder Arrangement: | 12in line |
| Displacement: | 21.9L |
| Bore and Stroke: | 128*142(mm) |
| Compression Ratio: | 15:1 |
| Governor Type: | Electronic |
| Start battery voltage: | 24V DC |
| Air Intake System | |
| Air Intake System: | Turbo, Air/Air Cooling |
| Max Intake Restriction: | 6.35kpa |
| Air Flow: | 40.3m3/min |
| Exhaust System | |
| Exhaust Gas Flow: | 119.9m3/min |
| Exhaust Temperature: | 635℃ |
| Max Back Pressure: | 6kPa |
| Fuel System | |
| Fuel System: | Direct injection |
| 100%( Prime Power) Load: | 162.6L/H |
| 50%( Prime Power) Load: | 79.5L/H |
| Oil System | |
| Total Oil Capacity: | 40L |
| Oil Consumption: | |
| Engine Oil Tank Capacity: | 33-40L |
| Oil Pressure at Rated RPM: | |
| Cooling System | ||
| Cooling Way: | Water-cooled | |
| Total Coolant Capacity: | 113L | |
| Thermostat: | 71-85℃ | |
| Max Water Temperature: | 95℃ | |
| Alternator Data | ||
| Manufacturer: | LEROY SOMER/STAMFORD/SIEMENS/MARATHON/ENGGA /KEPU | |
| Excitation Mode: | Brushless and self- exciting | |
| Number of phase and Access Act: | 3-phase 4-wire | |
| Connecting Type: | "Y" type connecting | |
| Alternator Capacity: | 750KVA | |
| Alternator Efficiencies: | 95％ | |
| Overload: | (PRP)110% load can run 1h | |
| Protection Level: | IP22-IP23 | |
| Insulation Class, Temperature Rise: | H/H | |
| Telephone Influence Factor (TIF): | ＜50 | |
| THF: | ＜2% | |
| Voltage Regulation, Steady State: | ≤±1% | |
| Air Cooling Flow: | 1.035m3/s | |
| Altitude: | ≤1000m | |
| Genset Electrical Performance | |
| Voltage Regulation: | ≥±5% |
| Voltage Regulation, Stead State: | ≤±1% |
| Sudden Voltage Warp (100% Sudden Reduce): | ≤+25% |
| Sudden Voltage Warp (Sudden Increase): | ≤-20% |
| Voltage Stable Time (100% Sudden Reduce): | ≤6S |
| Voltage Stable Time (Sudden Increase): | ≤6S |
| Frequency Regulation, Stead State: | ≤5% |
| Frequency Waving: | ≤1.5% |
| Sudden Frequency Warp (100% SuddenReduce): | ≤+12% |
| Sudden Frequency Warp (Sudden Increase): | ≤-10% |
| FrequencyRecoveryTime(100%SuddenReduce): | ≤5S |
| FrequencyRecoveryTime(Sudden Increase): | ≤5S |
|
Options |
||||||
|
Engine |
Alternator |
|||||
|
Heater 2KW & 4KW |
Anti Condensation Heater |
|||||
|
Battery Charger 3.5A & 7A |
Permanent Magnet Generator(PMG) |
|||||
|
Water Separator |
Drop CT(For Paralleling) |
|||||
|
Daily Fuel Tank |
|
|||||
|
Fuel Level Sensor |
|
|||||
|
Control System |
Others |
|||||
|
Remote Control Panel |
Rainproof Type |
|||||
|
Auto Transfer Switch (ATS) |
Soundproof Type |
|||||
|
Paralleling System |
Trailer Type |
|||||
|
Open Type |
||||||
|
Overall Size |
Weight |
|||||
|
3450(mm)*1400(mm)*1900(mm) |
3800(kg) |
|||||
