24 Channels HF High Power Long Range RFID Reader

Product Description

Country/Region:China

City:Guangzhou

Product Attributes

  • - Model Number RD5124
  • - Place of Origin China
  • - Related Keywords hf rfid stationary reader, icode slix rfid reader, hf multiple channels reader

Description by Manufacturer

13.56MHz Long Range RFID Reader With 24 Channels Reading Range 90CM

Product Introduction:

Andea HF long range RFID reader RD5124 is designed upon fully self-intellectual property which owns high sensitivity and fast anti-collision algorithm. For its perfect anti-collision algorithm, there is no problem for it to read a large quantity of tags in once time. There are 24 SMA interface of this reader that can connect with 24 pieces antenna together. The default power is 4W and it is already suitable many positions, but for some special application, the character of its reading power from 1W to 8W will be helpful, the higher power will be much more helpful to read the tags quickly and exactly.

Product Features:

  • Self-intellectual property
  • Support ISO/IEC 15693 protocol tags
  • RF output power 1-8W
  • Advanced anti-collision algorithm, high identification rate, typical tag process speed is over 50tags/second
  • Support standard 50ohm RFID antenna with effective sistance up to 90cm
  • Support host and scan mode
  • Support addressable multiple antenna ports
  • Support reader network
  • Low power dissipation design
  • Provide DLL and demonstration software source code to facilitate further development

Technical Specification
Model RD5124
Operating Frequency 13.56 MHz
Compatible Protocols ISO 15693 and ISO 18000-3
RF Power 1-8W
Antenna Interface SMA*24
Communication Interface RS232 / RS485 and Ethernet
Working Voltage DC 12V
Max Power Consumption ≤18W
GPIO 1 Relay / 1 MOS
EMI Detection Support
Housing Material Metal Plate
Dimension 319*205*38mm
Weight 1875g


Product Application:

Andea's HF long range RFID reader series can be widely applied in many RFID application systems such as logistics, personnel identification, conference attendance, access control, anti-counterfeit, jewelry management, self-service of laundry and industrial process control.

Price

  • Price Condition FOB

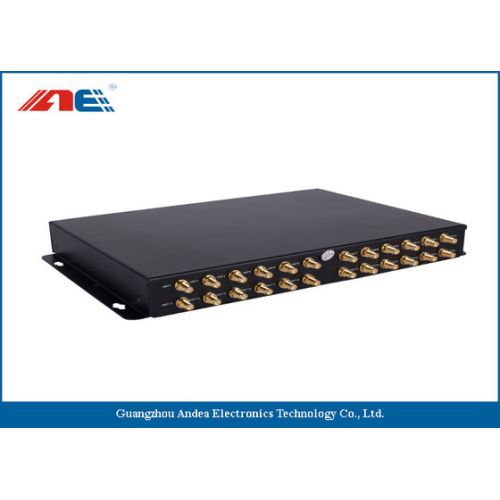

Product Image

Description by Manufacturer

13.56MHz Long Range RFID Reader With 24 Channels Reading Range 90CM

Product Introduction:

Andea HF long range RFID reader RD5124 is designed upon fully self-intellectual property which owns high sensitivity and fast anti-collision algorithm. For its perfect anti-collision algorithm, there is no problem for it to read a large quantity of tags in once time. There are 24 SMA interface of this reader that can connect with 24 pieces antenna together. The default power is 4W and it is already suitable many positions, but for some special application, the character of its reading power from 1W to 8W will be helpful, the higher power will be much more helpful to read the tags quickly and exactly.

Product Features:

  • Self-intellectual property
  • Support ISO/IEC 15693 protocol tags
  • RF output power 1-8W
  • Advanced anti-collision algorithm, high identification rate, typical tag process speed is over 50tags/second
  • Support standard 50ohm RFID antenna with effective sistance up to 90cm
  • Support host and scan mode
  • Support addressable multiple antenna ports
  • Support reader network
  • Low power dissipation design
  • Provide DLL and demonstration software source code to facilitate further development

Technical Specification
Model RD5124
Operating Frequency 13.56 MHz
Compatible Protocols ISO 15693 and ISO 18000-3
RF Power 1-8W
Antenna Interface SMA*24
Communication Interface RS232 / RS485 and Ethernet
Working Voltage DC 12V
Max Power Consumption ≤18W
GPIO 1 Relay / 1 MOS
EMI Detection Support
Housing Material Metal Plate
Dimension 319*205*38mm
Weight 1875g


Product Application:

Andea's HF long range RFID reader series can be widely applied in many RFID application systems such as logistics, personnel identification, conference attendance, access control, anti-counterfeit, jewelry management, self-service of laundry and industrial process control.

Price

  • Price Condition FOB
