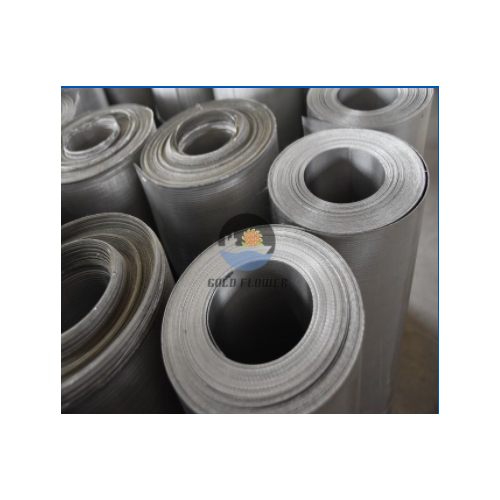

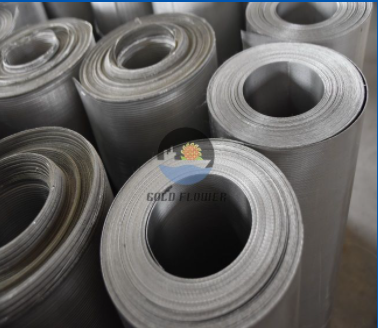

Plain Dutch Weave Mesh

Plain dutch weave mesh is one of our best products,it is exported to Russia,Ukraine,Italy,France and other countries in the world.

Product Description

Plain dutch weave mesh is one of our best products,it is exported to Russia,Ukraine,Italy,France and other countries in the world.

It is Widely used in Neutral chloride environment,oil refining industry,petrochemical and chemical industry,chemical industry transportation pipeline,oil and gas industry,pulp and paper industry,chemical fertilizer industry,urea industry,phosphate fertilizer industry,seawater environment,energy and environment protection industry,light industry and food industry,food and pharmaceutical industry equipment,high strength structure.

Plain weave:

Each warp wire and each weft wire passes over and under the next adjacent wire.

Plain dutch weave woven wire cloth has two sizes of wire diameter. The weft wires has thinner wire diameter, which is woven tightly together to provide a tight mesh for filtering. The warp wires has coarser wire diameter, which provides strength to the woven wire cloth.

Twill dutch weave

It is the extension of the twill weave. Each warp wire and each weft wire passes over and under the next two adjacent complementary wires, which is similar as twill weave. The wire diameter of warp wire is larger than weft wire. The mesh count in the weft direction is greater than the warp direction. Dutch twill weave enables the weft wires to be woven more densely and much smaller aperture sizes can be achieved.

Twill dutch weave is capable of supporting greater loads than the dutch weave. It has finer openings than the twilled weave. It is used for filtering heavy materials.

Reverse dutch weave woven wire cloth

Reverse dutch weave woven wire cloth has finer wire diameter in warp wire and coarser wire diameter in weft wire. and the mesh count in the warp wire is larger than the weft wire.

Woven wire mesh with various materials and weaving types has a wide range of applications, which the most common is filtration. Detail applications are in the below.

· Industrial filtration. Industrial filtration need accurate and effective filtration. We can supply the filter discs and sintered filter mesh for high efficiency and fine filtering.

· Food filtration.has various types for food filtering and sieving, including water, oil and powder.

· Hops and hot breaks filtration. The bazooka screen is mainly used in the kettles, tuns and other containers to filter hops and hot breaks.

· Shielding. The copper woven wire mesh is used for shielding interference and RMI.

Plain Dutch Woven Wire Cloth
Mesh/Inch Warp x Weft	Wire Diameter mm	Weight kgs/m2	Filtering valueμm
7 x 50	0.70 x 0.54	4.50	315
8 x 60	0.55 x 0.45	3.64	280
12 x 64	0.58 x 0.42	3.80	180
12 x 90	0.45x 0.30	2.60	160
14 x 88	0.50 x 0.33	2.81	150
14 x 100	0.40 x 0.28	2.52	140
18 x 100	0.40 x 0.28	2.61	130
24 x 110	0.35 x 0.25	2.45	115
25 x 140	0.30 x 0.20	1.96	100
30 x 150	0.23 x 0.18	1.61	95
30 x 160	0.23 x 0.18	1.69	90
40 x 200	0.18 x 0.14	1.30	75
45 x 220	0.18 x 0.125	1.22	56
50 x 250	0.14 x 0.11	1.00	60
50 x 280	0.14 x 0.10	0.84	45
60 x 300	0.14 x 0.09	0.80	40
65 x 320	0.12 x 0.085	0.75	36
70 x 350	0.11 x 0.08	0.70	34
70 x 400	0.11 x 0.07	0.68	32
80 x 400	0.12 x 0.07	0.55	35

Twill Dutch Woven Wire Cloth
Mesh/Inch Warp x Weft	Wire Diameter mm	Weight kgs/m2	Filtering valueμm μm
20 x 250	0.28 x 0.20	6.55	87
30 x 250	0.25 x 0.20	2.96	70
80 x 700	0.10 x 0.08	1.32	25
80 x 780	0.11 x 0.07	1.19	27
100 x 780	0.10 x 0.07	1.20	25
100 x 900	0.10 x 0.60	1.06	22
100 x 780	0.10 x 0.70	1.21	24
120 x 400	0.10 x 0.06	0.66	40
120 x 600	0.10 x 0.06	0.84	30
120 x 1100	0.08 x 0.05	0.88	18
165 x 800	0.07 x 0.05	0.70	15
165 x 1200	0.07 x 0.04	0.68	19
165 x 1400	0.07 x 0.04	0.76	14
200 x 600	0.06 x 0.045	0.48	20
200 x 900	0.05 x 0.035	0.40	23
200 x 1400	0.07 x 0.04	0.80	10
250 x 2000	0.04 x 0.027	0.46	8
280 x 2200	0.035 x 0.025	0.42	6.3
320 x 2300	0.033 x 0.024	0.41	5
325 x 2300	0.035 x 0.025	0.45	5
400 x 2800	0.025 x 0.020	0.36	3
500 x 3500	0.025 x 0.015	0.30	5

Reverse Dutch Weave Wire Cloth
Mesh/Inch Warp x Weft	Wire Diameter Warp x Weft mm	Wire Diameter Warp x Weft inch	Absolute Filter rating μm
63 x 18	0.40 x 0.60	0.0157 x 0.0236	220
107 x 20	0.24 x 0.60	0.0094 x 0.0236	210
130 x 35	0.20 x 0.40	0.0079 x 0.0157	80
132 x 16	0.24 x 0.60	0.0094 x 0.0236	200
132 x 32	0.20 x 0.40	0.0079 x 0.0157	105
140 x 40	0.19 x 0.38	0.0075 x 0.015	100
170 x 40	0.20 x 0.45	0.0079 x 0.0177	130
180 x 120	0.088 x 0.10	0.0035 x 0.004	75
200 x 120	0.08x 0.10	0.0031 x 0.004	70
175 x 40	0.15 x 0.38	0.0079 x 0.0157	70
175 x 50	0.15 x 0.30	0.0059 x 0.012	60
290 x 75	0.09 x 0.20	0.0035 x 0.0079	55
600 x 100	0.04x 0.14	0.0157 x 0.0055	25
615 x 130	0.04 x 0.13	0.0157 x 0.0051	22
615 x 102	0.04x 0.16	0.0157 x 0.0063	42
625 x 133	0.04 x 0.13	0.0157 x 0.0051	17
720 x 150	0.036 x 0.10	0.0014 x 0.0039	17
850 x 155	0.03 x 0.10	0.0012 x 0.004	10

Five-heddle Dutch Weave Wire Cloth
Mesh/Inch Warp x Weft	Wire Diameter mm	Aperture(mm)Warp x Weft	Open Area	Weightkgs/m2
108 x 59	0.160	0.075 x 0.271	20	1.07
110 x 60	0.160	0.071 x 0.263	19	1.09
38 x 38	0.150	0.518 x 0.518	60	0.43
