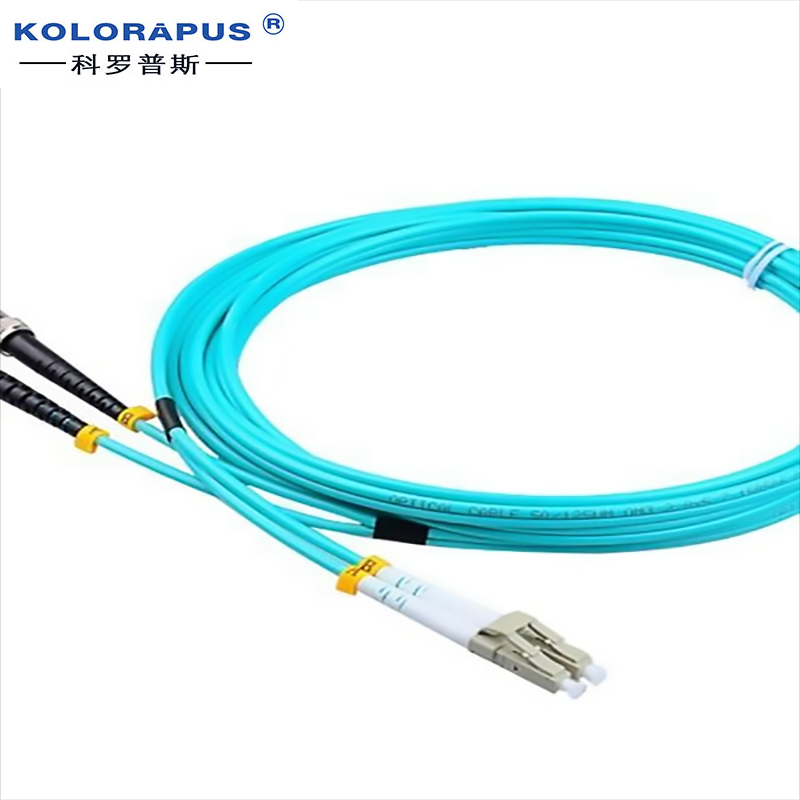

10 Gigabit Multi Mode OM4 Duplex Fiber Optical Patch Cord/Jumper 3m
This 50/125µm OM4 ST To LC Multimode fiber optic cable features an extremely high bandwidth, suitable for high throughput ent
Product Description
This 50/125µm OM4 fiber optic cable features an extremely high bandwidth, suitable for high throughput enterprise networks, telecomm rooms, server farms, and cloud storage network applications. It is ideal for connecting 10G SR, 10G LRM, SFP+ transceivers, etc. for 10G/40G/100G Ethernet connections. It supports 10GB transmissions up to 400 meters and 40G/100GB transmissions up to 100 meters and is fully backwards compatible with 50/125. These OM4 cables allow for longer connection lengths than OM3 cables.
Features:
-
Duplex multimode fiber optic patch cable
-
LC to ST connectors
-
50/125 OM4 fiber
-
low-smoke, zero halogen (LSZH) rated jacket
Applications:
-
Fiber Network Deployments
-
Fast Ethernet
-
Fibre Channel
-
Infiniband
-
ATM
-
Gigabit Ethernet
-
Other Data Applications Requiring High Transfer Rates
Product Parameter:
| Fiber Type | Multimode OM4 (50/125um) |
| Fiber Count | Duplex |
| Jacket Material | OFNR |
| Connector Type | LC to ST |
| Polish Type | UPC to UPC |
| Cable Diameter | 2.0mm |
| Insertion Loss | ≤ 0.30dB |
| Return Loss | ≥ 20dB |
| Repeatability | 1000 times typical change value ≤ 0.20dB |
| Interchangeability | ≤ 0.20dB |
