Product Description

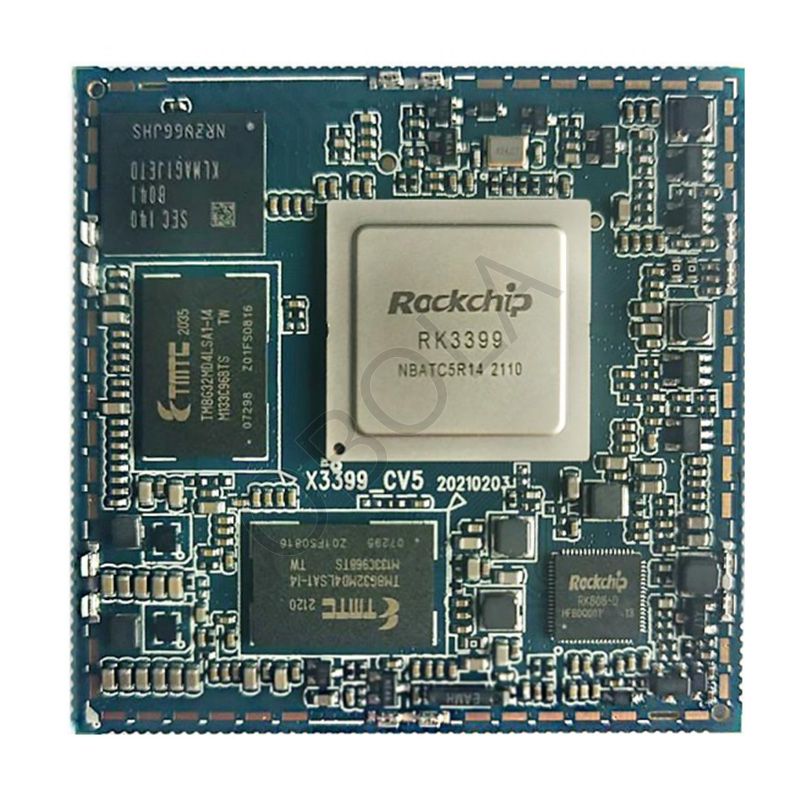

Model: 3399cv5
Optional configuration: RAM(LPDDR4)+ROM(eMMC) 2+16G and 4+16G
Features of Rockchip ARM Motherboard RK3399 for 3D Machine
• 2*Cortex-A72 core, 1.8GHz 4*Cortex-A53, 1.4GHz; Mali-T864 GPU supports OpenGL ES1.1/2.0/3.0/3.1, OpenVG1.1, OpenCL, DX11.
• A variety of display interfaces, HDMI2.0, MIPI-DSI, eDP1.3, DP1.2, maximum resolution up to 4K, support dual screen display, dual screen display; It also provides a variety of peripheral interfaces, such as PCle, USB3.0 Host, Type-C, MIPI-CSI, SPDIF, I2C, SPI, UART, ADC, PWM, GPIO, I2S(support for 8-channel digital microphone display input) and Gigabit Ethernet.
• 4K VP9 and 4K 10bits H265/H264 video decoding, up to 60fps; With video post-processing: anti - interleaving, noise removal, edge, refinement, color optimization.
Dual ISP, the maximum support single 13MPix/s or double 8MPix/s, support dual camera data input at the same time, accelerate image recognition applications.
• Support Gigabit Ethernet, 2.4GHz & 5GHz dual-band WiFi, Bluetooth 5.0, and reserved Mini PCle package 4G LTE installation slot, so that communication smoother, more flexible choice.
Experience the power and potential of the stamp hole core board with the Rockchip ARM Motherboard RK3399. Unlock endless possibilities for your embedded systems, drive innovation, and stay ahead of the competition. Choose the stamp hole core board and revolutionize your embedded applications today.
In summary, the stamp hole core board, equipped with the Rockchip ARM motherboard, offers exceptional performance, versatility, and security for embedded systems. With its compact form factor, extensive connectivity options, and modular design, this board empowers developers to create advanced and customized solutions. Embrace the future of embedded systems with the stamp hole core board.
Applications of Rockchip ARM Motherboard
1. Self-service device
2. edge computing
3. 5G intelligent terminal
4. Pos machine
5. Commercial display all-in-one face recognition
Product Parameters
|
CPU |
RK3399 |
|
Main Frequency |
Quad-core A53(1.4GHz) + Dual-core A72(1.8GHz) |
|
Memory / Storage |
DDR: 2GB or 4GB, maximum 4GB |
|
Power ICs |
Uses RT808, supports dynamic FM, etc. |
|
Operating System |
android, linux, debain, ubuntu |
Interface parameters
|
LCD Interface |
Support DSI/LVDS/EDP/HDMI interface output |
|
Touch Interface |
Capacitive touch, extendable with resistive touch using USB or serial port |
|
Audio Interface |
AC97/IIS interface, support for recording and playback |
|
SPDIF Interface |
1 x 8-channel optical audio output interface |
|
SD card interface |
2 SDIO output channels |
|
emmc Interface |
On-board emmc interface, no additional pinout |
|
Ethernet Interface |
Supports 1 Gigabit Ethernet |
|
USB HOST2.0 interface |
2-way HOST2.0 |
|
USB HOST3.0 interface |
USB3.0 interface is already occupied by NPU |
|
OTG Interface |
1 OTG interface |
|
UART Interface |
3 serial ports, support with flow control serial port |
|
PWM Interface |
4 PWM outputs |
|
IIC Interface |
8-way IIC output |
|
SPI Interface |
5 SPI outputs |
|
ADC Interface |
1 ADC output |
|
CAN Interface |
Not supported |
|
Camera Interface |
1 x BT656/BT601, 1 x MIPI output |
|
HDMI Interface |
1 HDMI2.1 TX |
|
PCIE Interface |
1 x PCIe2.1 |
|
|
Not supported |
