Pump Volute Casing

Product Description

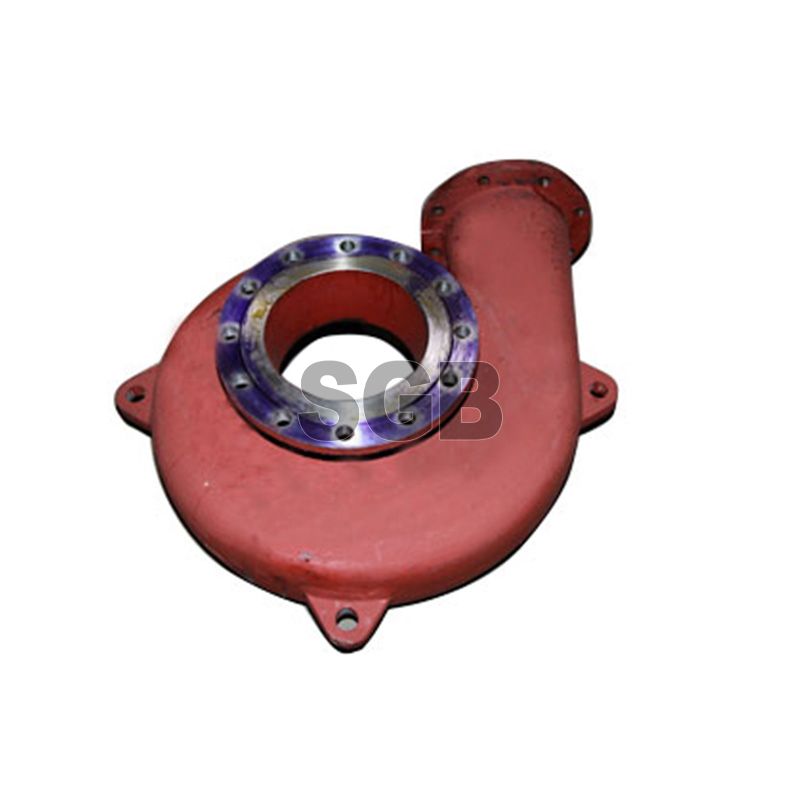

The pump volute casing is the most common type of centrifugal pump. Its characteristic feature is the volute-shaped pump casing which is typical for single-stage centrifugal pumps. The pump parts volute casing is specially designed to constrict the fluid from the pump inlet, direct it into the impeller and then slow and control the fluid before discharge. A pump volute casing is a curved funnel that increases in area as it approaches the discharge port. The volute of a centrifugal pump is the casing that receives the fluid being pumped by the impeller, maintaining the velocity of the fluid through to the diffuser. As liquid exits the impeller it has high kinetic energy and the volute directs this flow through to the discharge. As the fluid travels along the volute it is joined by more and more fluid exiting the impeller but, as the cross sectional area of the volute increases, the velocity is maintained if the pump is running close to the design point.

These volute casings come in two different types: single volute and double volute. In a single volute casing, the impeller discharges into one volute that wraps completely around the impeller. This type of casing features one cutwater that directs the flow of the liquid towards the discharge of the limestone slurry pump. Double volute casings have two cutwaters located 180 degrees apart from each other. Normally a double volute pump can be identified simply by looking down the discharge flange: a noticeable vane is located inside the nozzle that divides the inner diameter of the discharge nozzle.

Features:

- Advanced hydraulic model, CAD-aided design, high efficiency and remarkable energy-saving effect.

-Can manufacture parts according to your drawings.

-Materials as follows:

1.High Chrome concentration alloy 1, Rockwell hardness HRC ≥60, high abrasion application.

2.High Chrome concentration alloy 2, Rockwell hardness HRC ≥58, high  abrasion application .

3.High Chrome concentration alloy 3,  both anti-abrasion and corrosion-resistant, can be used in PH ≥4 and cl- 20000 ppm environment.

4. Other materials according to your requirements.

SGB is a state-owned large-scale industrial slurry pumps manufacturer integrating R&D, design, manufacture, marketing and service. There are slurry pump products applicable for various working conditions for sale.
