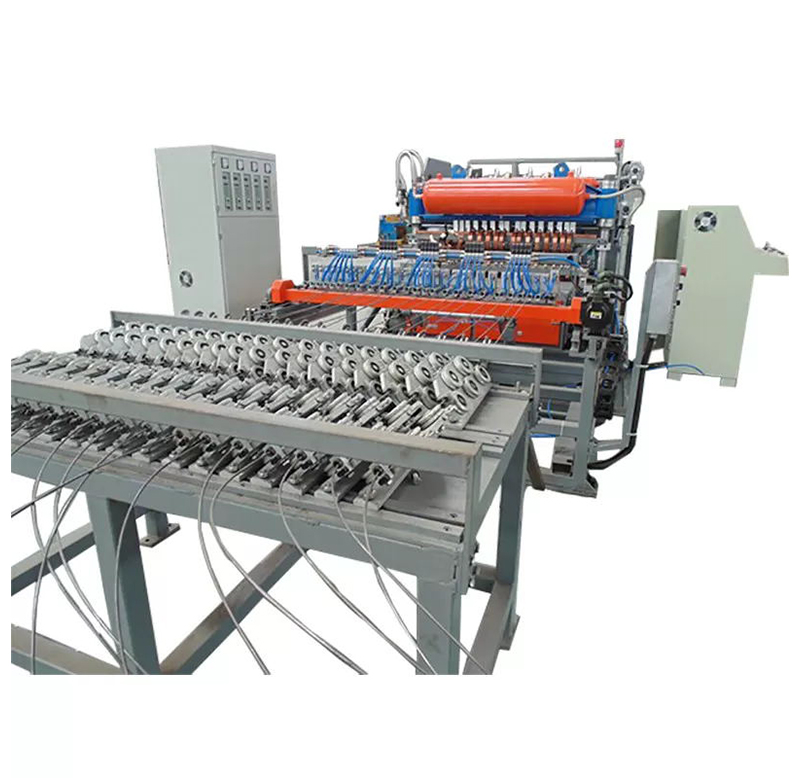

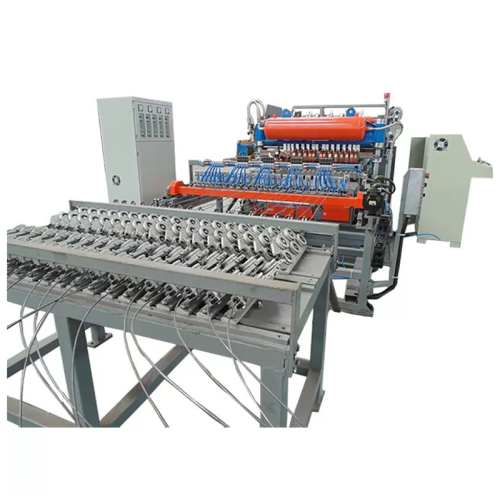

Roll Mesh Welding Machine
Welded wire mesh machine, also known as welded wire mesh panel machine, is a machine used to produce welded wire mesh panels for construction and other purposes. Welded wire mesh is a type of wire mesh that is created by welding wire together at each intersection, creating a strong and durable panel. It is often used in construction, fencing, and other applications where a strong
Product Description
Detailed Product Description
| Item: | High Frequency Steel Wire Wire Roll Mesh Welding Machine | Lead Time: | 7 Days |
|---|---|---|---|
| Welding Method: | Mechanical | Automation Degree: | Full Automatic |
| Certification: | CE ISO | Producton Capacity: | 50 Sets/Month |
| Voltage: | 220V/380V/415V/440V | Control System: | PLC |
| Cooling Method: | Water Cooling | Warranty: | 1 Year |
| High Light: |
ISO Roll Mesh Welding Machine, 415V Roll Mesh Welding Machine, 415V Wire Welding Machine |
||
High Frequency Steel Wire Wire Roll Mesh Welding Machine
In order to adapt to the capacity of the user's main power transformer and reduce the current impact , the welding electric electronic control adopts the welding sub - control power transmission , that is , the welding transformer can be operated separately when welding the same row of we aments .
The welding power electronic control system adopts synchronous control technology. The welding time and sub-control welding are controlled by single chip microcomputer. The control precision is high and the performance is stable.
| Item | Product type | Parameter | Remark |
| 1 | Max. welding capacity | ¢3.5+3.5mm | |
| 2 | Long wire diameter | ¢2-3.5mm | |
| 3 | Cross wire diameter | ¢2-3.5mm | |
| 4 | Long wire feeding method | In coil | |
| 5 | Cross wire feeding method | In coil | |
| 6 | Long wire spacing | ≥25mm | Mechanically adjustments |
| 7 | Cross wire spacing | ≥25mm | Programming adjustments |
| 8 | Length range of wire mesh | ≤60000mm | Adjustable |
| 9 | Width range of wire mesh | ≤1300mm | Adjustable |
| 10 | Number of welding spot | 20PCS | |
| 11 | Working speed max. | 50-70times/min |
Welding forming mesh, the motor of Full Automatically Roll Mesh Welding Machine gives the roll power, the mesh is rolled, the whole mesh is finished, one end of the Full Automatically Roll Mesh Welding Machine is opened, and the other end is automatically rolled out by Full Automatically Roll Mesh Welding Machine.
Welded wire mesh machine, also known as welded wire mesh panel machine, is a machine used to produce welded wire mesh panels for construction and other purposes. Welded wire mesh is a type of wire mesh that is created by welding wire together at each intersection, creating a strong and durable panel. It is often used in construction, fencing, and other applications where a strong, long-lasting mesh is required.
ACE Mesh Machinery can order online or contact us through any of our methods according to your needs and receive the machine according to your specifications.
