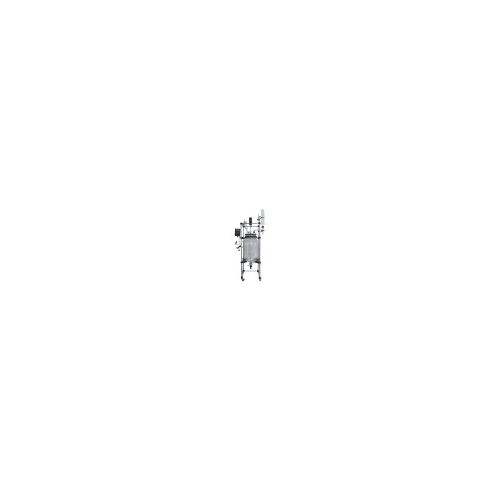

100L Jacket Glass Reactor

Labsnova glass reactors wks-100 is using a cooling or heating "jacket" around the vessel through which a cooling or heating fluid is circulated. The jacket has ability to permits the uniform exchange of heat between the fluid circulating in it and the walls of the vessel. labsnova guarantee best process performance From laboratory synthesis through scale-up to production.

Product Description

Please continue to view our 100L glass reactor.

Our LABSNOVA single jacketed 100l glass reactors are the best realtors on the market. Each lab reactor has an outer jacket that allows for liquid circulation in the temperature range of -80°C to 250°C.

Designed for the synthesis of different types of materials at controlled temperatures and under vacuum, the 100l Jacketed Filtered Glass Reactor can be used for single or multi-step reactions and filtration, production, and process scale peptide synthesis in the same vessel. The filter base eliminates material transfer and significantly reduces material loss.

Each reactor has an adjustable stirring speed and a constant pressure feed funnel that allows you to add material to the vessel at a uniform and controlled rate. Built-in condensers make it possible to recover some material at a controlled rate.

These reactors leave no stone unturned, but we have crushed the market in terms of pricing, offering great value at a low cost. Our reactors are the best value on the market, and each one offers excellent customer service.

Take your lab to the next level and start using the LABSNOVA 100L Single Jacketed Reactor today!



I. Brief introduction



The LABSNOVA Jacketed Glass Reactors are mainly used for synthetic reaction, crystallization, and concentration of different types of materials in a controlled temperature and vacuum environment.  It finds a multitude of uses in the chemical, pharmaceutical, and biotechnology industries, in research and development, in manufacturing and quality assurance, in laboratories, and plant construction. We manufacture Glass Reactors from laboratory scale 1-5L to pilot production scale 10-200L. Support customization, and provide a TURNKEY SYSTEMS solution.



LABSNOVA manufactures single-layer, double-layer, and three layers glass reactors. Each reactor features adjustable stirring speeds and a constant pressure feeding funnel that allows you to add material to the vessel at a uniform and controlled speed. The built-in condenser makes it possible to recover some materials, also at a controlled rate of speed. The condenser helps to recover some materials distilled during the reaction. Circulating liquid can be filled into the jacket to heat or cool materials inside. Three layers of glass reactor with two jackets, the inner jacket is for circulating liquid, and the outer layer should be pumped to vacuum condition for thermal insulation.



Jacketed Glass Reactors (double layer) WKS-150 can be made into system devices with a Circulating Water Vacuum Pump, Diaphragm Vacuum Pump, Circulating Chiller, and heater chiller.



II. 10 Good reasons to choose LABSNOVA 100L Jacketed Glass reactors



1. All seals are PTFE to increase durability and longevity. PTFE is resistant to a large portion of solvents and chemicals.

2. With GG-17 High Borosilicate Glass that is durable and resistant.

3. Wide range of temperature operations -80°C to 250°C

4. Large condensing area for faster condensing.

5. Durable stainless steel support frame with casters.

6. Speed display, digital temperature display, operate visually and easily.

7. Quite an operation, safety features such as over-temperature shut off and dry-run protection.

8. Rugged, High RPM stirring motor for superior stirring power.

9. Excellent price, A solution for any budget.

10. 1-year warranty with fantastic customer service.



III. Technical Data

Model WKS-10L WKS-20L WKS-30L WKS-50L WKS-80L WKS-100L WKS-150L
Frame material stainless Stainless Steel
Volume 10L 20L 30L 50L 80L 100L 150L
Jacket volume 6L 8L 10L 12L 16L 18L 23L
Number of reactor bottle 6
Working temperature -80 to 250℃
Stirring speed 0~450rpm
Stirring power 90w 90w 120w 120w 120w 200w 750w
Funnel Pressure equalizing
Package size(mm)

1370x590x

800

1480x660x

810

1720x680x

850

1720x680x

850

1900x700x

870

1900x700x

870

1720x680x

850

Package weight(kg) 60 80 88 92 125 125 160
Power source 220v/110v,50-60Hz

 Glass-Reactor- Details.jpg

VI. 100L Glass reactors Details

V. 100L Glass reactors Turnkey System Solutions

100l-jacketed glass-reactor-trunkey-1-1.jpg

1. 100L Jacketed Glass Reactor WKS-100 + 100L Circulating Chiller WKC-100/30 + Water Vacuum Pump WKP-95B

2. 100L Jacketed Glass Reactor WKS-100 + 100L Circulating Heater WGY-100 + Water Vacuum Pump WKP-95B



Technical Data





Model WKS-10L WKS-20L WKS-30L WKS-50L WKS-80L WKS-100L WKS-150L
Frame material stainless Stainless Steel
Volume 10L 20L 30L 50L 80L 100L 150L
Jacket volume 6L 8L 10L 12L 16L 18L 23L
Number of reactor bottle 6
Working temperature -80 to 250℃
Stirring speed 0~450rpm
Stirring power 90w 90w 120w 120w 120w 200w 750w
Funnel Pressure equalizing
Package size(mm)

1370x590x

800

1480x660x

810

1720x680x

850

1720x680x

850

1900x700x

870

1900x700x

870

1720x680x

850

Package weight(kg) 60 80 88 92 125 125 160
Power source 220v/110v,50-60Hz



Model S212-1L S212-2L S212-3L S212-5L
Frame material Stainless Steel
Volume 1L 2L 3L 5L
Jacket volume 0.4L 0.8L 1.2L 2L
Number of reactor bottle 5
Working temperature -80 to 250℃
Stirring speed 0~800rpm
Stirring power 40w 40w 90w 90w
Funnel Pressure equalizing
Package size(mm)



1200x480x

400



1200x480x

400



1380x500x

400

1380x500x

400



Package weight(kg) 32 32 36 36
Power source 220v/110v,50-60Hz
