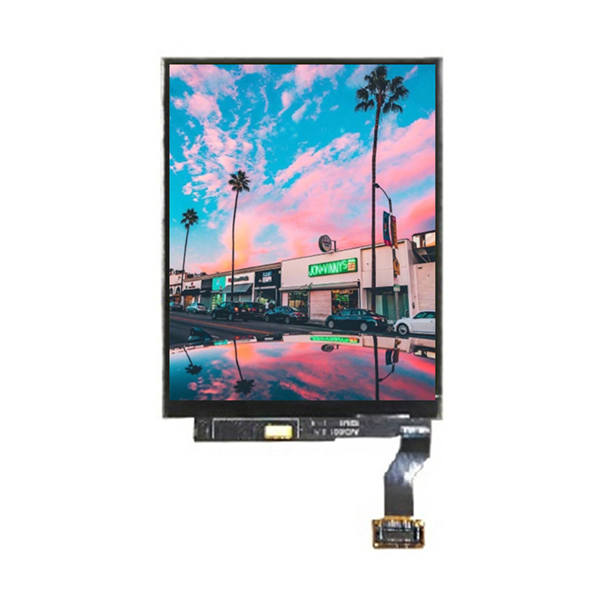

240*320 2.58'' AM OLED DG-O240320-258A

Product Description

DG-O240320-258A is an diagonal 2.58 inch AMOLED with 240*320 dot arrangement. It is designed to support MPU i80-system 8bit bus interface (RGB888) and full color mode. Self-emitting allows it to reach 200cd/m2 brightness and backlight unnecessary, Since it’s backlight-free, it is only 1.7 Typ mm thick. It will function well with -30 to 80°C operating temperature and -40 to 90°C storage temperature. This product can be customized according to client’s requirement. All these features make DG-O240320-258A a perfect choice for cell phone screen, hand-held appliances, portable devices, personal health appliances, and medium-size industrial and medical instrument. All of our products zre open to be custom-made. Please contact us for any OLED displays

Specifications of AMOLED Display

Part #	DG-O240320-258A
Diagonal Size	2.58’’
Resolution	240*320 RGB
Pixel Pitch	0.056*0.168 mm
Active Area	39.6*52.48 mm
Module Size	44.48*62.35 mm
Brightness	200cd/m2
Thickness	1.7Typ mm
Voltage	3.3V
Connector	24 pin FPC
Brightness	350 (Typ.)
Operating Temp	-30 to 80°C
Storage Temp	-40 to 90°C
Color Mode	Full Color (16.7M Color)
Driving Mode	Active Matrix
Interface	MPU i80-system 8bit bus interface (RGB888)
