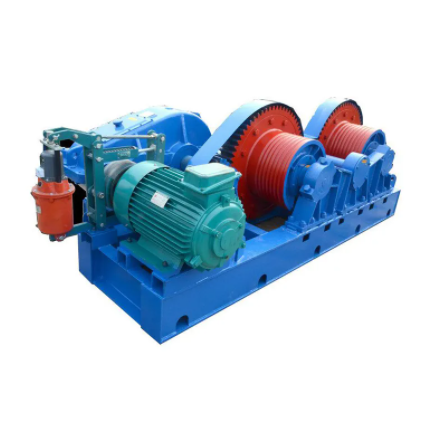

JMM Friction Winch

JMM Friction Electric Winch is mainly used for long-distance pulling. JMM electric winch characteristic is stable wire rope speed and lifting. Applicable to all kinds of bridges, ports, terminals and another construction projects in large factories, power engineering equipment installation.

Introduction to products:

A friction winch is a mechanical equipment that drives the winch drum to rotate by power and transfers force by steel wire rope to lift objects. The Jmm Friction Type Winch is driven by friction, which will cause wear in the transmission process and needs to be equipped with friction plates or friction sleeves to offset the consumption of friction. JMM friction winch is suitable for lifting, lowering and transportation of items, and the ambient temperature used is generally not more than 40 ° C.

When the friction winch works, the wire rope only passes through and is not wound to the drum, and the working principle is the same as the movement of the belt and pulley, relying on the friction of the drum and the wire rope to pull the object. Such as grinding, elevator traction machines, etc., need to ensure that the wire rope has a certain Angle and pressure on the rope wheel to ensure the necessary friction, if necessary, the pressure wheel can be increased to increase the wire rope on the rope wheel Angle and pressure.

In addition, the machine is also equipped with a ratchet stop device, which can make the drum stay in any required position. The advantage of friction winch is that the motor starts in a no-load state and the starting torque is small. At the same time, the motor does not need to reverse frequently, so that the power grid load can be uniform. In addition, due to the use of a friction clutch, can prevent transmission damage during overload.

DEJUN is a heavy duty lifting equipment manufacturer specializing in designing and manufacturing heavy lifting equipment including overhead cranes, gantry cranes, jib cranes, hoists, construction winches and marine winches. We have more than 10 years of experience in crane design and manufacture and have grown into a professional player in the crane and winch industry as we always focus on the needs of esteemed customers. No matter what kind of winches you are looking for, please keep in touch with us and we will give you a reply soon. Welcome to our company. Just act on it!

Friction Winch Technical parameters:

Friction winch is a kind of large-scale winch used on many occasions such as the construction of various kinds of bridges, ports, and docks, or handling boats or ships as required. DEJUN provides suitable friction winch solutions to suit various requirements.

JMM friction winch models are JMM10, JMM16, JMM20, JMM32, and JMM55.

Rated load: 1-100t;

Melting rope quantity: 20-5000m;

Rope speed: 5-20m/min;

Voltage: 220-690V, 50/60HZ, 3Phase;

Details: According to the different working conditions or environments, we can customize the friction winch with different rated loads or pull force, drum capacity, rope diameter, speed, power mode or any other special requirements. Friction electric winch for long travel distance material handling, such as large and super concrete and steel construction, etc. Friction electric winch 10 t-65 ton is for sale good quality and good price. Contact us to get more information on the Friction electric winch now.

Notice

1. The working temperature of the friction winch is affected by the heat caused by the friction of the brake and the friction sheet, which will have a certain loss, and there is a problem that the decline speed is difficult to control.

2. Friction winch shall not be used on the construction site.

Application of Friction Electric Winch:

JMM electric rope winch is mainly used for a variety of large, extra-large concrete, special grade concrete, steel structure And steel cable, steel cable long distance traction machine large stroke lifting. It is characterized by the constant speed of wire rope and smooth lifting. Suitable for all kinds of Bridges, ports, mines, wharves, and other road and bridge engineering construction and large factories and mines, power engineering equipment installation.

For example, in some occasions requiring a high-speed operation, friction rope winch can play its high-efficiency characteristics to improve the working efficiency and production efficiency of the equipment; In some cases with large vertical heights, the volume problem of the equipment can be solved by increasing the number of pulley sets and increasing the number of ropes or chains, so as to make it more flexible and convenient; In some cases where the nature of the material is more strict, the transmission efficiency of the equipment and the safety of the material can be improved by controlling the friction coefficient.

If you are interested in our friction winch or want to receive a quote, please feel free to contact us and provide the following basic information so that we can quote you:

◆ The purpose and working environment of the winch

◆ Load capacity

◆ Drum capacity

◆ Speed

◆ Electric power supply

◆ Other special requirements
