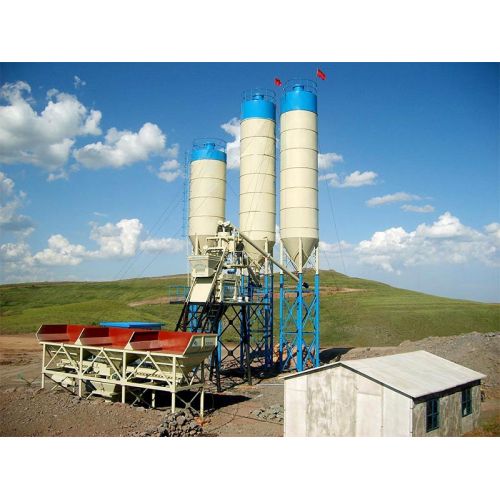

Belt Conveyor Concrete Batching Plant

Belt conveyor concrete batching plant is usually used for commercial concrete supplying business or big projects where huge amount high-quality concrete is needed.

Product Description

Product Description

Belt conveyor concrete batching plant is usually used for commercial concrete supplying business or big projects where huge amount high-quality concrete is needed.

For belt conveyor concrete batching plant, each aggregate has its own scale, so the weighing accuracy and efficiency is remarkably improved. With the help of transitional hopper, the working efficiency of the whole batching plant can be 15% higher than that of the skip hoist type of batching plant.

1. Belt conveyor concrete batching plant is a common type of concrete batching plant, it is usually used for medium and big projects. It is composed of the following parts:

1) independent weighing aggregate batcher;

2) belt conveyor (if your space is enough, flat belt will be used; if not, bucket belt will be used);

3) twin-shaft concrete mixer, planetary concrete mixer;

4) water, cement and additive scales;

5) cement silo;

6) screw conveyor;

7) penumatic system;

8) packing exterior (protecting the environment)

9) fully automatic computer control system.

2. Advantages of belt conveyor concrete batching plant:

1) high production efficiency;

2) environment-friendly;

3. Details of our belt conveyor concrete batching plant

Concrete Conveyor Notes:

The conveyor belt should not be too long to avoid mixing changes

Inputs and Outputs: Measures should be taken to avoid mixing problems and keep mixing uniform (use a cement mixer or funnel)

Conveyor: Use a specific scraper or cleaner followed by a high-pressure jet

Oblique belt: consider water loss during conveying

concrete mixer is ideal for a variety of applications

Includes: Dams, Caissons, Wind Turbine Foundations, Bridge Decks, Backfills, Pad Casting, Environmental, Warehouse Slabs, Foundations, Foundations, Inclined and Outdoor Slabs



Belt Conveyor Concrete Batching Plant

HZS60 Belt Conveyor Concrete Batching Plant



Capacity: 60 m3/h

Concrete Mixer: JS1000

Aggregate Batcher: PLD1600

Control System: Computer Control

Belt Conveyor Concrete Batching Plant

HZS90 Belt Conveyor Concrete Batching Plant



Capacity: 90 m3/h

Concrete Mixer: JS1500

Aggregate Batcher: PLD2400

Control System: Computer Control

Belt Conveyor Concrete Batching Plant

HZS120 Belt Conveyor Concrete Batching Plant



Capacity: 120 m3/h

Concrete Mixer: JS2000

Aggregate Batcher: PLD3200

Control System: Computer Control

Belt Conveyor Concrete Batching Plant

HZS180 Belt Conveyor Concrete Batching Plant



Capacity: 180 m3/h

Concrete Mixer: JS3000

Aggregate Batcher: PLD4800

Control System: Computer Control
