Cultivator
Cultivator, farm implement or machine designed to stir the soil around a crop as it matures to promote growth and destroy weeds. A cultivator is a machine that disturbs the top surface of the soil to either prepare the soil into a smooth, loose, aerated seedbed, and/or to kill weeds.
Product Description
Cultivator, farm implement or machine designed to stir the soil around a crop as it matures to promote growth and destroy weeds. A cultivator is a machine that disturbs the top surface of the soil to either prepare the soil into a smooth, loose, aerated seedbed, and/or to kill weeds.
Looking for cultivator manufacturer or supplier? Welcome to contact us.
Performance Parameters

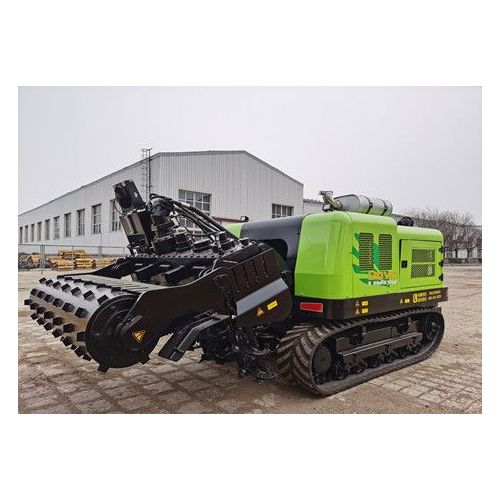

| FS550-21 Smashing&Scarifying Cultivator Specifications | |
| Dimension(Lengh*Width*Hight) | 5240X2100X2400（mm） |
| Operating weight | 11600 Kg |
| Grade ability | 20° |
| Fuel tank capacity | 440L |
| Hydraulic oil tank capacity | 280 L |
| Ground clearance | 350mm |
| Engine | |
| Model | Dongfeng Cummins QSZ13-C550-Ⅲ |
| Rated power | 410 kw/1900r/min |
| Max. Torque | 2300N.m/1200～1700r/min |
| Displacement | 13L |
| Undercarriage | |
| Track width | 450 mm |
| Track | Rubber track |
| Carrier roller(single side) | 2 pcs |
| Track roller(single side) | 6 pcs |
| Idler(single side) | 1 piece |
| Travel Tansmission Hydraulic system | |
| Double circuit loop electric control hydrostatic driving system | |
| Brake | wet type multi-disc braking device |
| Final drive | two stages planetary gear speed reduction final drive. |
| Travel speed | 0-5.5 km/h |
| Max. working pressure | 40 Mpa |
| Implement hydraulic system | |
| Control method | electric hydraulic control |
| System flow | 115L/MIN |
| Max. working pressure | 20 Mpa |
| Smashing & scarifying hydraulic system | |
| Control way | electric hydraulic control |
| System flow | 480 L/MIN |
| Max. working pressure | 40 Mpa |
| Rotary tillage device | |
| Auger | 6 sets |
| Max. tilling depth | 500mm |
| Tilling width | 2100 mm |
| Max. rotating speed | 506r/min |
