SITRAK CNG Truck

SINOTRUK Man Technology SITRAK C7H 6X4 440HP 460hp CNG Tractor Truck in Uzbekistan

Product Description

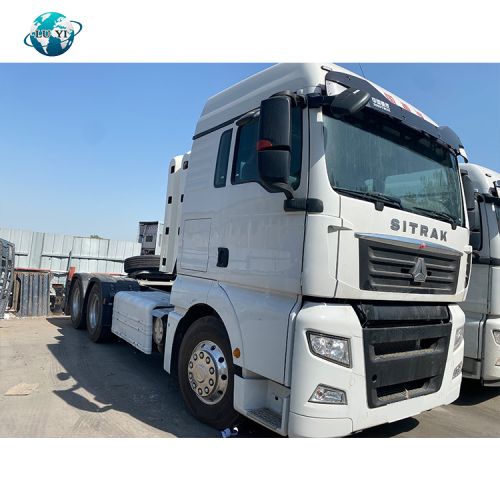

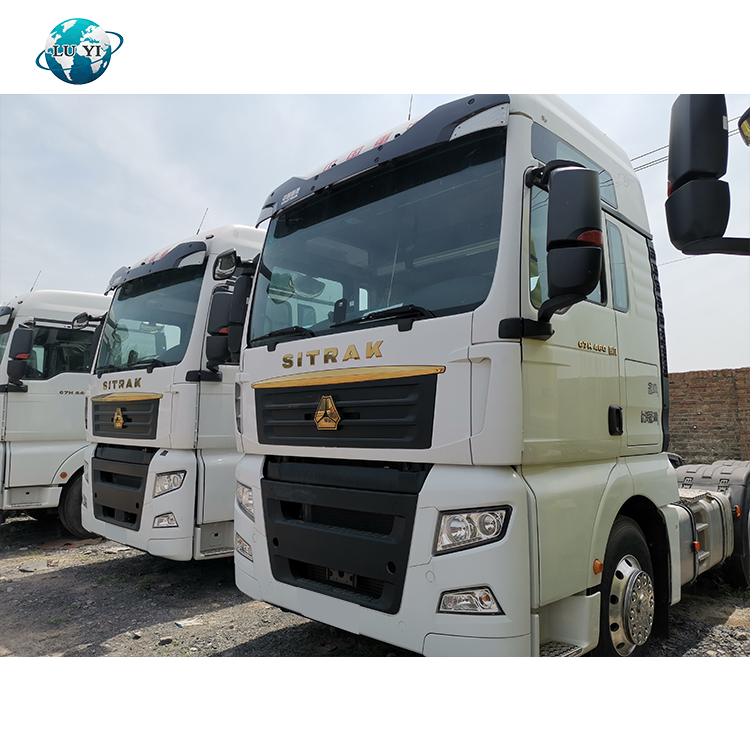

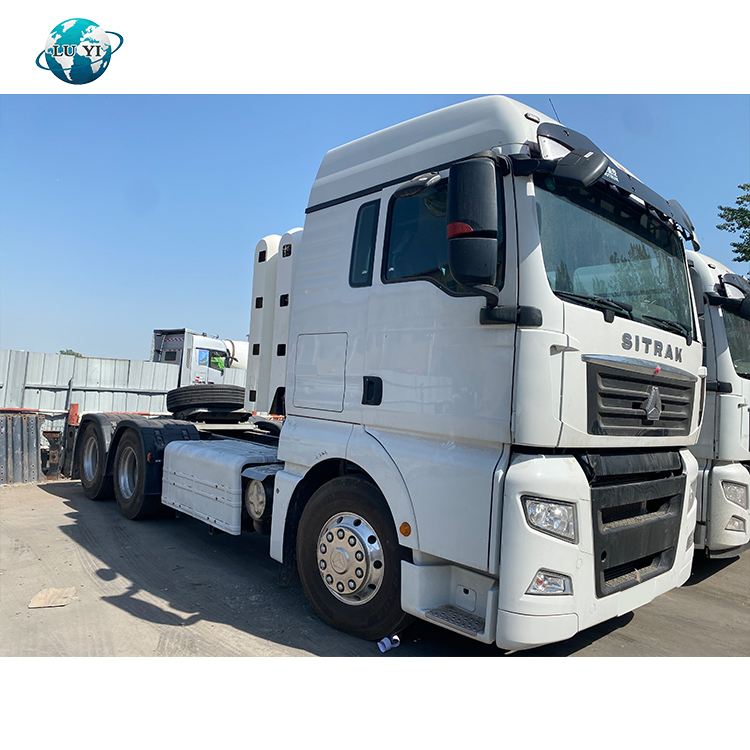

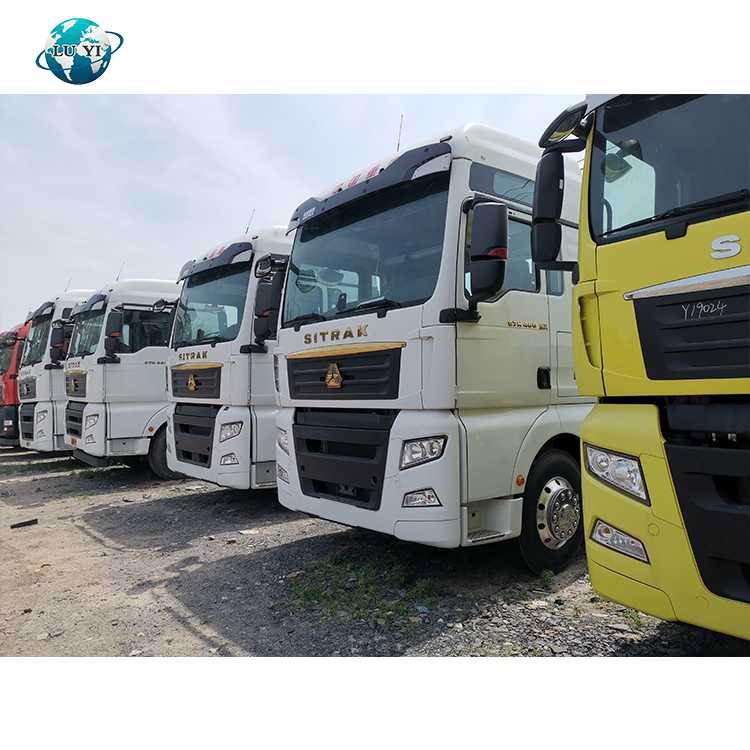

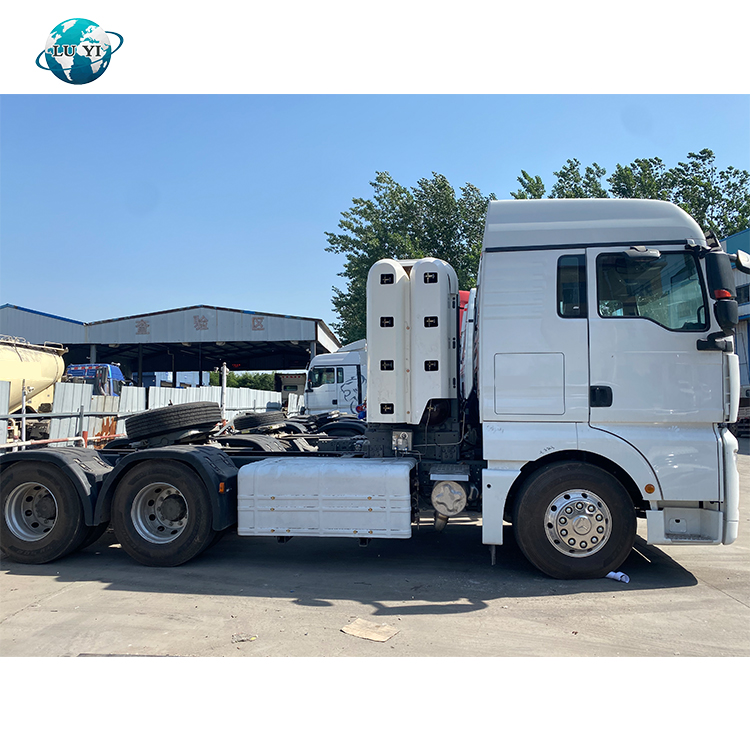

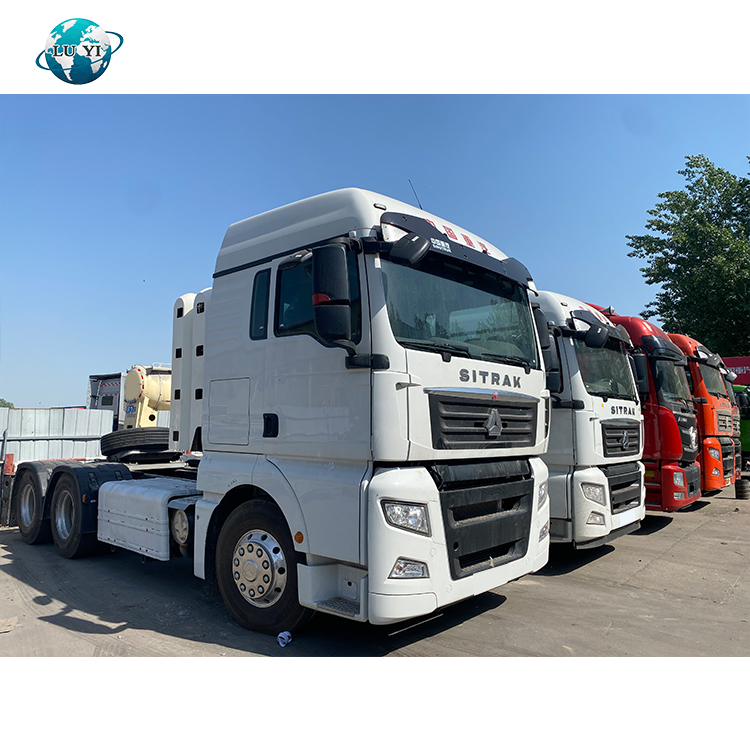

SINOTRUK Man Technology SITRAK C7H 6X4 460hp CNG Tractor Truck in Uzbekistan

Luyi is professional supplier for Truck head, dump truck models include: sinotruck HOWO 336hp ,371hp,420hp

Main specifications of SITRAK C7H 6x4 Tractor Truck
Manufacture: SITRAK
Color: Optional
Horsepower: 460HP
Emission Standard: Euro III
Cabin:C7H-G, standard extended cabin,
with double sleeper, with air conditioner
Transmission: ZF16S2530T0
Steering: 8118, Power steering
with hydraulic system, LHD
Front Axle: HR9, 9T
Rear Axle: MCP16, loading capacity 16TX2, double reduction(central reduction + wheel reduction)
speed ratio: 3.82, optional is 4.57;5.46
Tyre:12.00R20, steel radial tire, plus one spare tire
Fifth Wheel : 90#
Suspension: Leaf Spring
Tank: 600L
With ABS
Curb quality: 8800kg
Total weight: 25000kg
Rated towing weight: 40000kg
Overall dimension: 7095X2550X3900 mm

Parameter

Product Name	SINOTRUK New Model Man Technology SITRAK C7H 6X4 430hp Tractor Truck
Chassis Model	ZZ4256V324HC1B
Driving Type	LHD (RHD is optional)
Cabin	C7G
Engine	MC11.43-30 430HP Euro 3
Transmission	ZF16S2230TO for 440/430PS 16 speed manual control aluminum synchronizer Gearbox. Ratios:1-13.80,2-11.54,3-9.49,4-7.93,5-6.53,6-5.46,7-4.57,8-3.82,9-3.02,10-2.53,11-2.08,12-1.74,13-1.43,14-1.20,15-1.00,16-0.84,R1-12.92,R2-10.80
Steering	ZF power steering, modol ZF8118, hydraulic steering with power assitance
Front Axle	HF9,1x9000 KGS Steering with doubleT-cross section beam
Rear Axle	HC16, 2x16000 KGSPressed axle housing, central single reduction with hub reduction,with differential locks between wheels and axles.
Propeller Shaft	Double universal joint propeller shaft with gear-shaped coupling flange
Chassis	Frame: Uprofile parallel ladder frame with section of 300x80x8mm,reinforced subframe all cold riveted cross members Front suspension:10 semi elliptic leaf spring, hydraulic telescopic double-action shock absorbers and stabilizer Rear suspension:12 leaf semi elliptic springs, bogie spring and stabilizer
Brake	Service brake: dual circuit compressed air brake Parking brake (emergency brake): spring energy, compressed air operating on front shaft and rear wheels Auxiliary brake: engine exhaust brake
Electrics	Operating voltage: 24 V, negative grounded Starter: 24 V, 5.4 Kw Alternator: 3-phase, 28 V, 1500 W Batteries: 2 x 12 V, 165 Ah Cigar-lighter, horn, headlamps, fog lights, brake lights, indicators and reverse light
Tyres	315/80R22.5, tubeless tyres with one spare tyre
Fuel Tank	600L
Fifth Wheel	90# or 50 #
Overall Dimension	700025503100mm

SITRAK CNG Tractor Truck

Customer praise

Order customers praise

Company Advantages

Shandong Luyi Vehicle Co., Ltd, Luyi Trailer is specializing in the production of various semi trailers: Tipper semi trailer, Lowbed semi trailer, Flatbed semi trailer, Van type semi trailer; Container skeleton trailer, Special Equipment transport semi trailer, Fuel tank semi trailer, Cement tank semi trailer and Construction machinery, spare parts.

Luyi Trailer has professional R & D team, international advanced production equipment: plasma underwater cutting machine, Automatic welding; Large bending machine, Jigsaw machine, Automatic tank welding machine, Shot peening machine, Spray painting and high-precision testing equipment etc.

Luyi Trailer series products have been widely exported to more than 80 countries in Africa, Middle East, Asia, Eastern Europe, South America, etc. Luyi Trailer is committed to being special vehicle manufacturer that has the consumer at the center of everything we do, and providing most optional special transport solution for individual customer demands.

Our Advantages

-Our Factory: Shandong Luyi Vehicle Co., Ltd. is one of the qualified manufacturers of various trailers, like lowbed semi-trailer, flatbed trailer, cargo trailer, skeleton container semi trailer, 50ft flatbed trailer, etc. With high standard machinery and automatic equipment, powerful R&D team and elite sales team, We have built long businessrelationship with many world famous enterprises such as SINOTRUK, SHACMAN, etc.

-Product Quality: Our factory has first-class production equipment, design director has many years of experience in designing all kinds of trailers. Our goal is to produce the highest quality, most durable trailer in China. We adapt the trailer to every type of road.

-Our Services: We will reply for you as soon as possible, from product recommendation to order until you receive the product, we will provide you with quality service.

-Our customer: Our customers come from all over the world. Every year, tens of thousands of trailers are sold to Africa, Asia, South America and so on. Our products are sold to more than 50 countries and regions.

-Our accessories: Main axle brands include FUWA, BPW, etc. Main Trailer Suspension brands include FUWA, SAF, etc. Main Landing Gear brands include FUWA, JOST, etc. Main tire brands include Chengshan, Triangle, Linglong, etc.
