CNG Howo Tractor Truck
Sinotruk Howo CNG 420HP 6x4 10 wheels Tractor Truck Trailer head is suitable for towing all kinds semi trailer which is used in Logistics business, construction site and Mining area.
Product Description

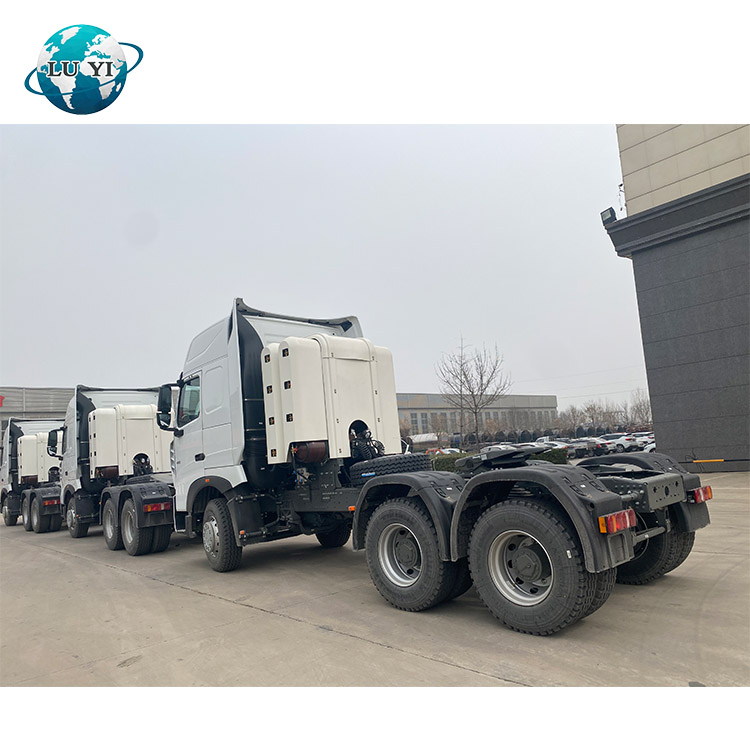

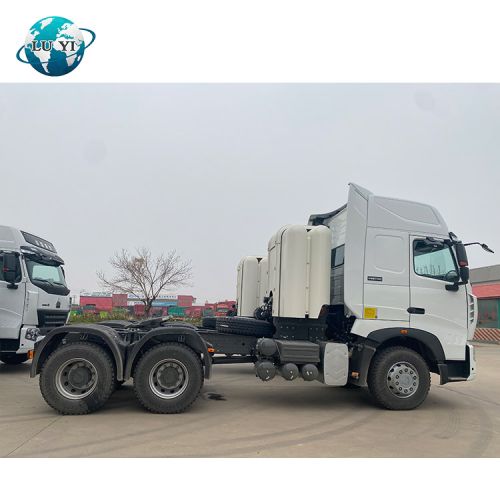

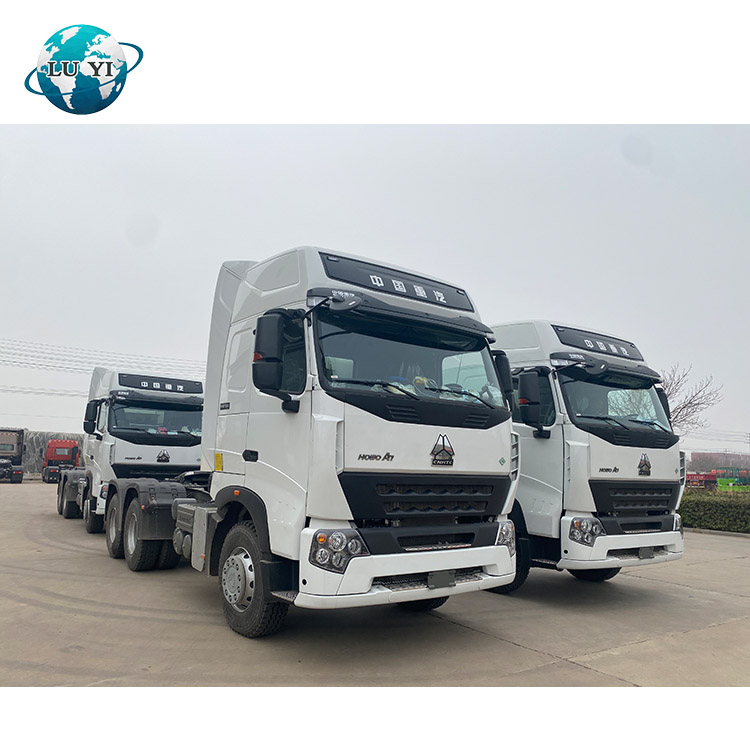

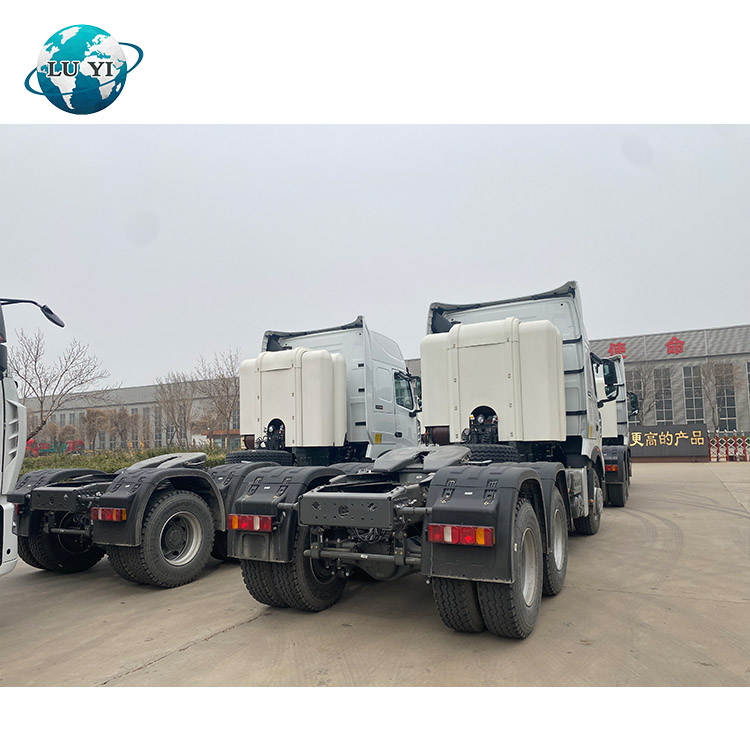

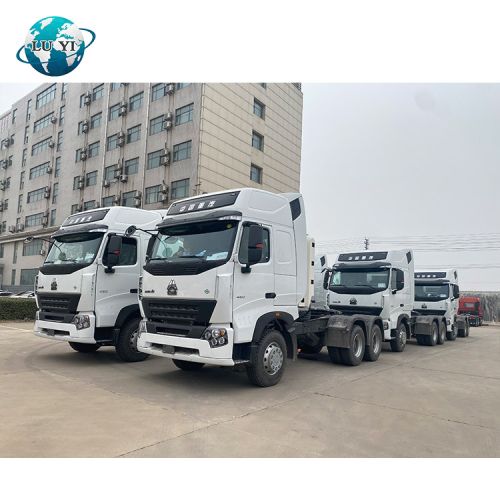

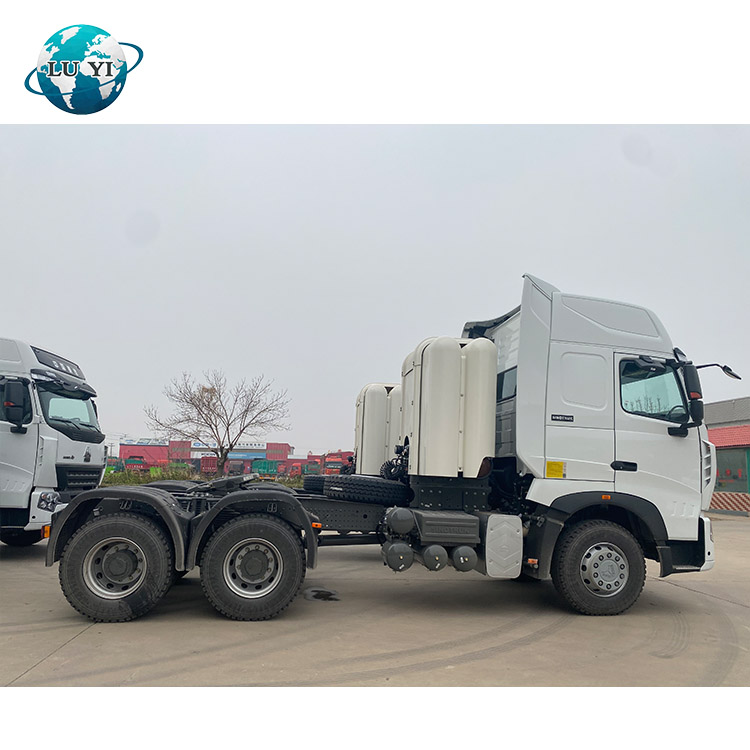

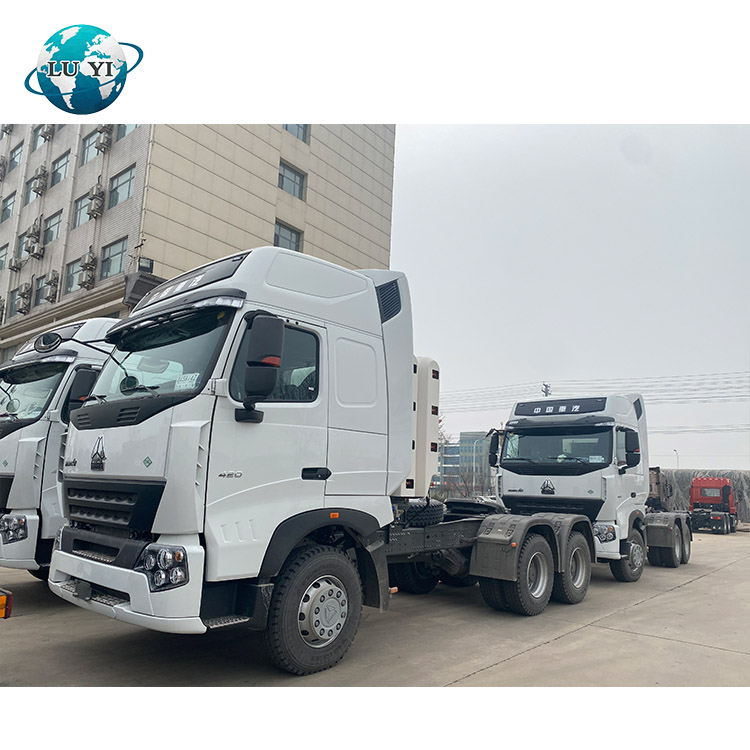

Sinotruk Howo CNG 420HP 6x4 10 wheels Tractor Truck Trailer head
Luyi is professional supplier for Truck head, dump truck models include: sinotruck HOWO 336hp ,371hp,420hp
1. Based on STR technology from Austria
2. Cabin:Four point s suspension HOWO Cabin with spring and air shock absorber, VDO panel
3. Engine:371HP WD615 STR engine ( from 290hp - 420 hp you can chose ) Type: Diesel 4-stoke Direct injection,6-cylinder in line, Turbo-charging, Inner cooling.
4. Front axle: HF9 STEYR technology front steering axle
5. Rear axle: AC16,16ton STEYR technology double reduction hub reductor driving axle
6. Steering: ZF8098, driver sit at the left hand side(LHD),also can change into RHD
7. Loading capacity: More than 30ton
8. Designed for tough road condition especially for African countries
9. Punctual delivery time (Usually within 10days) 10. Excellent spare parts supply for after-sales service.
Parameter
| Basic Information | |
| Announcement model： | ZZ3257N3647C |
| Loading capacity | 20 cbm(18cbm optional) |
| Drive form： | 6X4 |
| Wheelbase： | 3625+1350mm |
| Engine： | Sinotruk WD615.96C |
| Gearbox： | Sinotruk HW19710 |
| Rear axle speed ratio： | 5.45 |
| Length： | 8.6m |
| Width： | 2.5m |
| Height： | 1.7m |
| wheel track： | Front track：2022mm；track rear：1830/1830mm |
| Vehicle weight | 12.29 ton |
| Loading capacity | 30 ton |
| Gross mass： | 25 ton |
| Approach angle： | 19° |
| Departure angle： | 26° |
| Engine： | |
| Engine： | Sinotruk WD615.96C |
| Number of cylinders： | 6 |
| Type of fuel： | diesel |
| Displacement： | 9.726L |
| Emission standard： | Euro2 |
| Horsepower： | 375hp/371HP |
| Maximum output： | 276kW |
| Torque： | 1500N·m |
| Speed at maximum torque ： | 1100-1600rpm |
| rated speed： | 2200rpm |
| Engine form： | Six cylinder inline |
| Box parameter | |
| Box length： | 5.6m |
| Box width ： | 2.3m |
| Box height： | 1.5m |
| Box type： | rear dump |
| Gearbox |
|
| Gearbox： | Sinotruk HW19710 |
| Forward gears： | 10 |
| Reverse gears： |
2 |
| Tyre |
|
| Tyre Type： | 12.00-20 |
| Number of tires： | 10 |
|
fuel tank |
|
| capacity of tank ： | 400L |
| chassis |
|
| Rear axle description： | STR16 / AC16 |
| Rear axle allowable load： | 16000kg |
| Rear axle ratio： | 5.45 |
| Spring leaf number： | 10/12 |
