ILI9342C TFT LCD Module with Touch Screen , 2.6 Inch 320x240 LCD Display

Product Description

Country/Region:China

City:Shenzhen

Product Attributes

  • - Place of Origin China
  • - Supply Type OEM Service
  • - Condition New
  • - Related Keywords TFT LCD Module

Description by Manufacturer

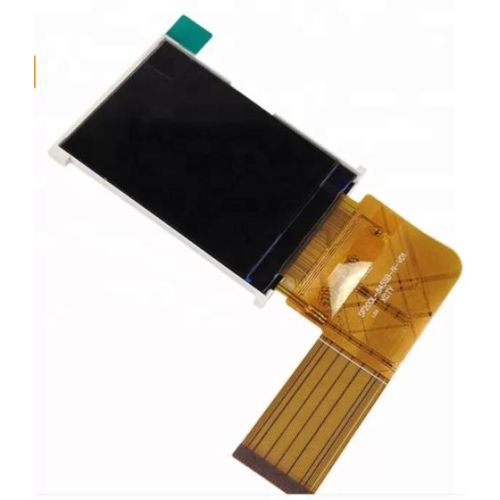

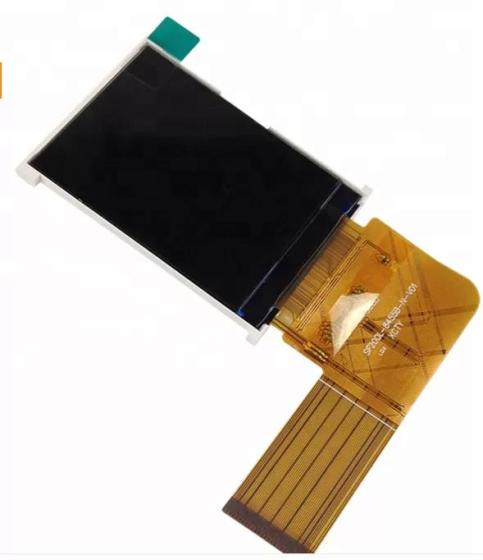

2.6 inch landscape 320x240 ILI9342C TFT LCD display module with RGB MCU SPI interface and touch panel

Parameter information

Item Name2.6 inch landscape TFT LCD display module 320x240 ILI9342C wide viewing angle with RGB SPI MCU interface and resistive touch panel
Color262K color
PixelRGB
Contrast Ratio300:1
Brightness350cd/m2
Outline Dimension60.3(W)X51.15(H)X3.8(T)mm
Viewing Area59.9(W)X48.95(H)mm
Active Area52.8(W)X39.6(H)mm
Resolution320x240
Dots0.153*0.153mm
Pitch0.5mm
Drive Power Supply Voltage3.3V
Viewing Angle6:00
Operation Temperature-20°C ~ +70°C
Storage Temperature-30°C~ +80°C
Display ModeTFT LCD
Touch panelResistive touch panel or capacitive touch panel
FPC LenghtFPC connector type
Response Time100ms
ICILI9342C
IC PackagingCOG

Main Application
Telecommunication DevicesTelephone, Interphone, watch, radio, etc.
Home AppliancesWashing Machine, Refrigerator, Home Integrator etc
Industrial ControlHomotaxial Numerically-controlled machine tool
Instrument and ApparatusTester, Medical instruments
Vehical-mounted DigitalMP3, MP4 and vehical-mounted air conditioner
MiningMine's lamp charger, gas tester
MarineSalinity tester

According to customers' various requests,TFT lcd, lcd panel, lcd monitor, lcd screen, FSTN and STN lcd display, industrial lcd, we can match all accessories which inclusive of driver board,LED backlight & LVDS cables.

ODM/OEM accetable

Various LCD Display Mode with different backlight color and temperature range available

Product Range

1) TN, STN, FSTN LCD panels / modules

2) Customized LCD panels / modules

3) Small(1.5 inch-7 inch)TFT LCD


Touch Display Module
