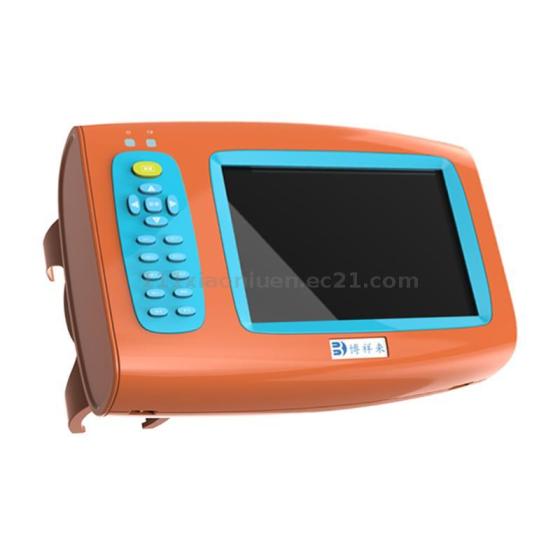

Bxl-V10
Product Description
Country/Region：China
City：Zhengzhou
Product Attributes
- - Place of Origin China
- - Supply Type In-Stock Items
- - Condition New
- - Related Keywords V10, Veterinary B-ultrasound, B-ultrasound for sheep, B-ultrasound for pigs
Description by Manufacturer
Technical parameters of B-ultrasoundmachine for cattle:
Host size: 93mm×44mm×151mm
Software version: B3.1 HD version,professional veterinary software
Display screen: 5.6 inches LCD monitor
Host shape: sling design, independentcouplant slot design.
Scanning method: electronic convex array(micro-convex), electronic linear array
Image processing: pseudo-color, grayscalecorrection, image smoothing, histogram, microcomputer control and digital scanconverter (DSC), using digital beamforming (DBF), real-time dynamic apertureimaging (RDA), real-time dynamic sound velocity traversing (DRA) ), real-timepoint-by-point dynamic receiving focusing (DRF), numerical control dynamicfrequency scanning (DFS), frame correlation and other technologies, the imageof the whole machine is clear, stable and has high resolution.
Image display: the depth of the largeconvex probe is 90-240mm, adjustable in 16 levels; the depth of the rectalprobe is adjustable in 8 levels, from 60-130mm. The image can be up/down,left/right, and the gray scale of the image is 256 levels, with 16 kinds ofanimal body markers.
Frequency adjustment: 5.0-7.5MHz third gearadjustment (rectal probe), 2.5-5.0MHz third gear adjustment (large convexprobe)
Frame-related adjustment: 0.20-0.9516-level adjustment
Storage function: images can be stored, andmovies can be played back.
Measurements: distance, circumference,area, volume, gestational age, due date
Battery specification: 3000mAH/7.4V
Gain adjustment: the total gain isadjustable from 0-62, the near-field gain is adjustable from 0-30, and thefar-field gain is adjustable from 0-30.
Brightness adjustment: 38-64 adjustment
Contrast adjustment: 34-98 adjustment
Characters, annotations and body marks:date, clock, full-screen character editing, 16 types of body marks
Product Image
Product Video
Description by Manufacturer
Technical parameters of B-ultrasoundmachine for cattle:
Host size: 93mm×44mm×151mm
Software version: B3.1 HD version,professional veterinary software
Display screen: 5.6 inches LCD monitor
Host shape: sling design, independentcouplant slot design.
Scanning method: electronic convex array(micro-convex), electronic linear array
Image processing: pseudo-color, grayscalecorrection, image smoothing, histogram, microcomputer control and digital scanconverter (DSC), using digital beamforming (DBF), real-time dynamic apertureimaging (RDA), real-time dynamic sound velocity traversing (DRA) ), real-timepoint-by-point dynamic receiving focusing (DRF), numerical control dynamicfrequency scanning (DFS), frame correlation and other technologies, the imageof the whole machine is clear, stable and has high resolution.
Image display: the depth of the largeconvex probe is 90-240mm, adjustable in 16 levels; the depth of the rectalprobe is adjustable in 8 levels, from 60-130mm. The image can be up/down,left/right, and the gray scale of the image is 256 levels, with 16 kinds ofanimal body markers.
Frequency adjustment: 5.0-7.5MHz third gearadjustment (rectal probe), 2.5-5.0MHz third gear adjustment (large convexprobe)
Frame-related adjustment: 0.20-0.9516-level adjustment
Storage function: images can be stored, andmovies can be played back.
Measurements: distance, circumference,area, volume, gestational age, due date
Battery specification: 3000mAH/7.4V
Gain adjustment: the total gain isadjustable from 0-62, the near-field gain is adjustable from 0-30, and thefar-field gain is adjustable from 0-30.
Brightness adjustment: 38-64 adjustment
Contrast adjustment: 34-98 adjustment
Characters, annotations and body marks:date, clock, full-screen character editing, 16 types of body marks
