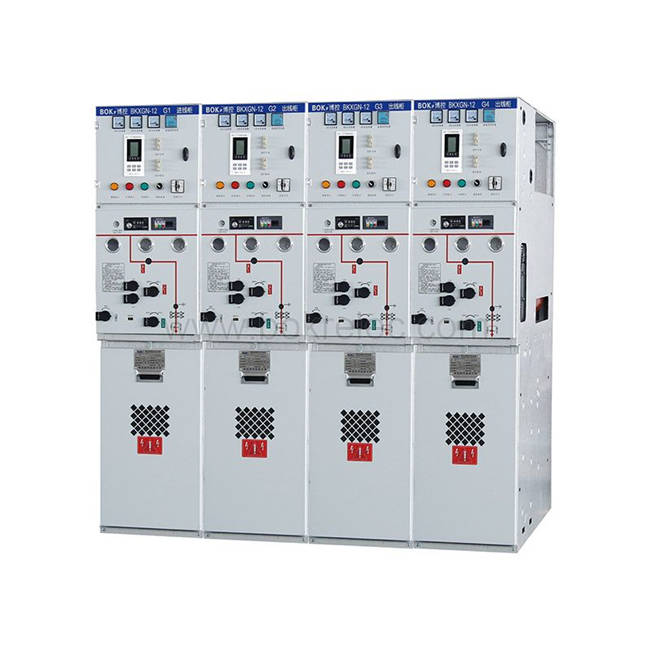

BKRM6-12 10KV SF6 Gas Insulated Switchgear

SF6 gas insulated switchgear in all-insulated cabinet. This SF6 switchgear has high quality with best wholesale price and considerate after-sale service. Rated voltage options:10kv, 20kv, 35kv, rated current options: 400A, 630A and 1250A.

Product Description

Product Description

SF6 Swichgear - BKRM6 12KV/24KV/35KV(GIS)

The SF6 gas insulated switchgear is suitable for middle voltage power distribution system with a rated voltage of 12kV. It could be used as RMUs in a power supply network, fault isolating switches and sectionalizing switches. If equipped with distribution automation devices (FTU/DTU) and communication devices, the SF6 insulated switchgear could communicate with the control center, measure the cable voltage, current, etc, and monitor the working status of switches.

BKRM6- 40.5 series of ring main unit is SF6 gas-insulated metal common tank enclosed switchgear, consisting of load break switch unit,load break switch fuse combination electrical unit, vacuum circuit breaker unit, and the incoming line unit of bus. It adopts a range ofadvanced technologies and materials, with excellent electrical and mechanical properties, less affected by environment and climate, in smallsize, easy to install easy to operate, with no need of maintenance, and can be flexibly combined. Its clear and intuitive design ensures simple and direct operation, the feeder's connection capacity is large, suitable for a variety of wiring systems.

Besides, we can replace the SF6 gas with nitrogen(N2 gas) that it will become a environmental friendly gas insulated switchgear. The green gas insulated switchgear safer and environmentally friendly more than SF6 GIS and it will replacing SF6 GIS in the future.



BKRM6-12 10KV SF6 Gas Insulating Switchgear



Features of SF6 Gas Insulated Switchgear

• The SF6 is the insulation material which is sealed in a stainless-steel enclosure, fully-insulated and maintenance-free.

• Long life endurance.

• Obvious watchable open contacts.

• Reliable interlock and safer operation.



Service Environment of SF6 Gas Insulated Switchgear

• Air temperature: Maximum temperature: +40℃; Minimum temperature:-25℃

• Humidity: Monthly average humidity 95%; Daily average humidity 90% .

• Altitude above sea level: Maximum installation altitude: 2500m

• Ambient air not apparently polluted by corrosive and flammable gas, vapor and etc.

• No frequent violent shake



Technical Parameters of SF6 Gas Insulated Switchgear



No

Item

Unit

C/F

CB module

Load break switch

Circuit breaker

1

Rated voltage

kV

12

24

36

12

24

36

2

Rated current

A

630(200A/F)

1250

3

Rated frequency

Hz

50/60

4

1 min power frequency   withstand voltage

kV

45

55

80

45

55

80

5

Lightning impulse   withstand voltage

kV

75

125/150

170/195

75

125/150

170/195

7

Rated active load and   close circuit breaking current

A

630

1000

8

Rated   cable charge breaking current

A

50&10

9

Rated short circuit   breaking current

kA

/

20

16

16/20

10

Rated short circuit   making current(peak)

kA

63

50

40/50

63

50

40/50

11

Short time(2s)   withstand current,load switch/earth

kA

25/20

20/20

16/20

25/20

20/20

16/20

12

Rated withstand   current(peak)

kA

63

50

40/50

63

50

40/50

13

Mechanism life

Times

3000

2000

10000

3000

5000



Applications of SF6 Gas Insulated Switchgear

SF6 gas insulated switchgear is widely applied in airport, power generation station, railway station, coal mine and etc..



Bokr Elec has rich experience in manufacture and supply of SF6 switchgear with gas insulated, vacuum circuit breaker and disconnector without maintenance, which greatly reduces maintenance and inspection workload. Contact us to get the best SF6 switchgear solution to your project.
