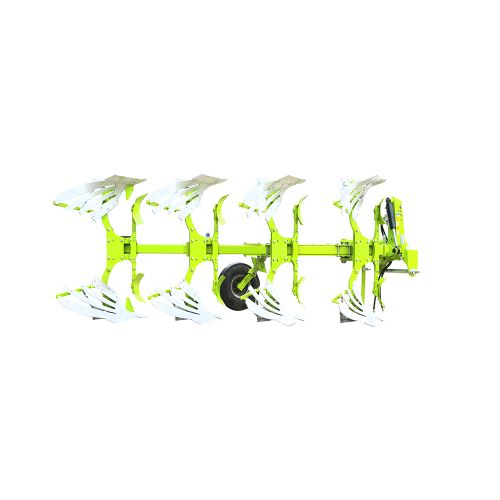

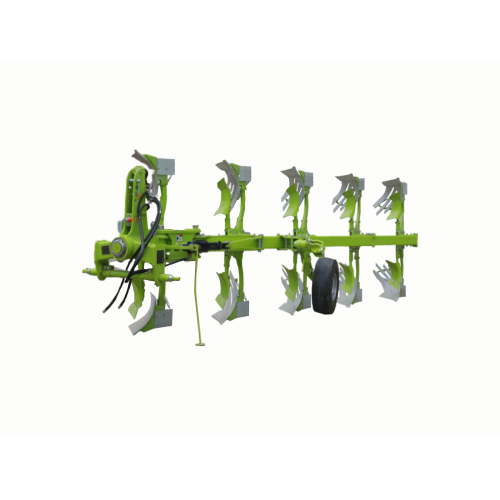

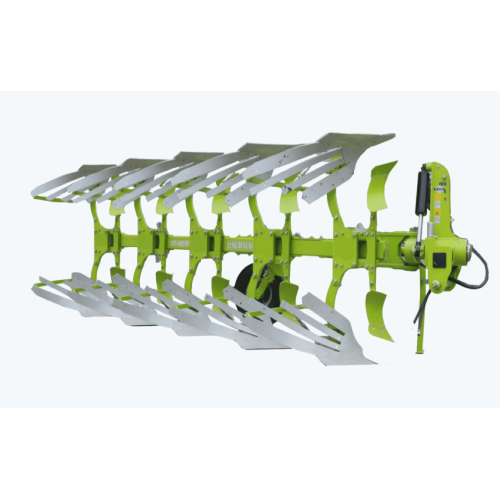

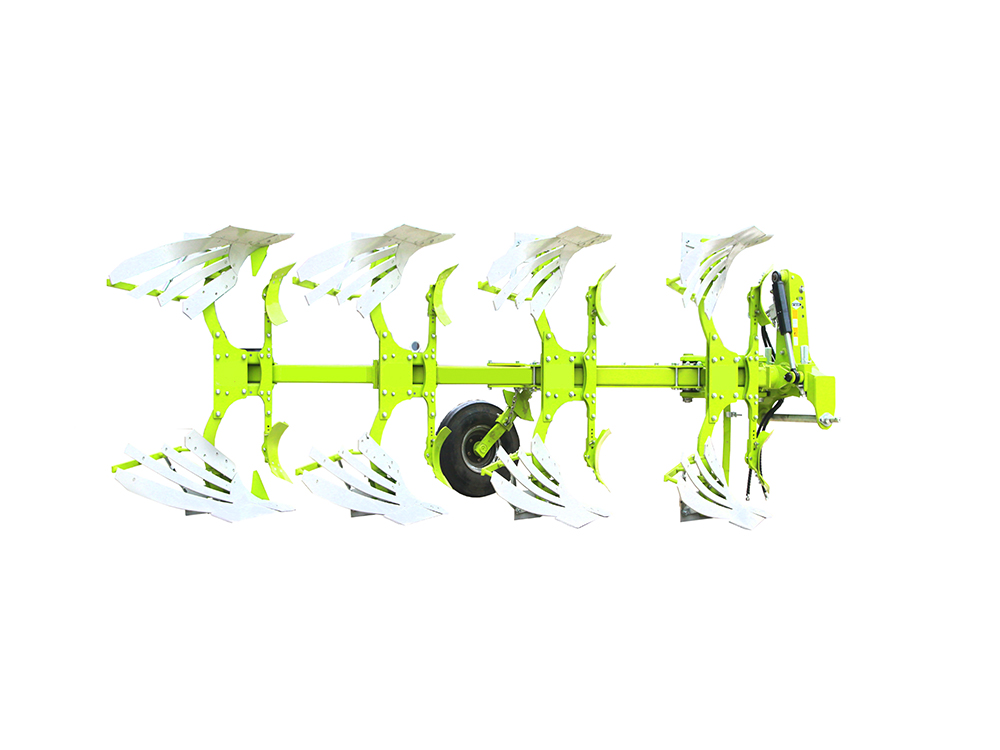

Hydraulic overturn plow

Using the latest international design, the ploughing width can be adjusted, and the soil entry is faster and lighter. The whole is equipped with protective screws, which can protect the plough column.The welding process is 100% completed by the robot, the overall material is made of alloy steel, the overall weight of the plough is light, the plough tip, the plough shovel, the fence, and the oil va

Product Description

Product Name

Features of Hydraulic overturn plow

Using the latest international design, the ploughing width can be adjusted, The overall welding process is 100% done by robotand the soil entry is faster and lighter. The whole is equipped with protective screws, which can protect the plough column.

How to use a Hydraulic overturn plow

The overturning plow is used in conjunction with the tractor, and the lifting of the plow and the turning of the plow are controlled by the double distributor.

Hydraulic overturn plow

Hydraulic overturn plow is characterized by flexible, stable, and not easy to damage. This product is used for farmland farming in plains, hills and mountainous areas. It has compact structure, reasonable design, flexible overturning, reliable overturning, strong soil crushing ability, fast operation speed, good work quality, high work efficiency, and can reduce the slope. Surface leveling, especially the ploughing operation of returning straw to the field in organic dry farming areas, the rate of stubble deduction is more than 90%. Well received by users. It is an ideal supporting agricultural implement for large, medium and small tractors.

The working principle and characteristics of the hydraulic turning plow

1. The plough tip adopts a vertical oblique insertion type, which greatly reduces the resistance of the ploughshare in the soil, and can smoothly enter the soil and realize deep ploughing.

2. The ploughshare as a whole forms an included angle of 45 degrees with the traction direction, which is conducive to the ploughing and crushing of the soil, and can bury the weeds on the surface, effectively preventing the rapid growth of weeds and the damage of pests and diseases on the surface. Soil moisture, deep ploughing every season can continuously improve soil quality, balance soil pH, increase soil nutrients and moisture, and increase crop yields.

3. The whole adopts a combined type, which is convenient for maintenance and replacement of wearing parts. Ploughshare The upper and lower coulter legs are assembled with bolts. Damage to one part will not cause other parts to be scrapped, which reduces the cost of maintenance. For example, if the plow tip is broken, the plow tip will be replaced, which will not cause the mold wall to be scrapped.

4. Hydraulic turning is adopted, which can improve turning efficiency and turning stability, and reduce the damage to tractor and plow caused by impact.

5. The connection method of three-point suspension is adopted, which is convenient to adjust the tillage depth, work stably, and turn the ridge level.

6. The weight of the heavy-duty overturning plough is more than 1000 kg, which can meet the high-strength and high-load work of the plough under the high-horsepower tractor.

-------------------------------------------------------------------------------------------------
